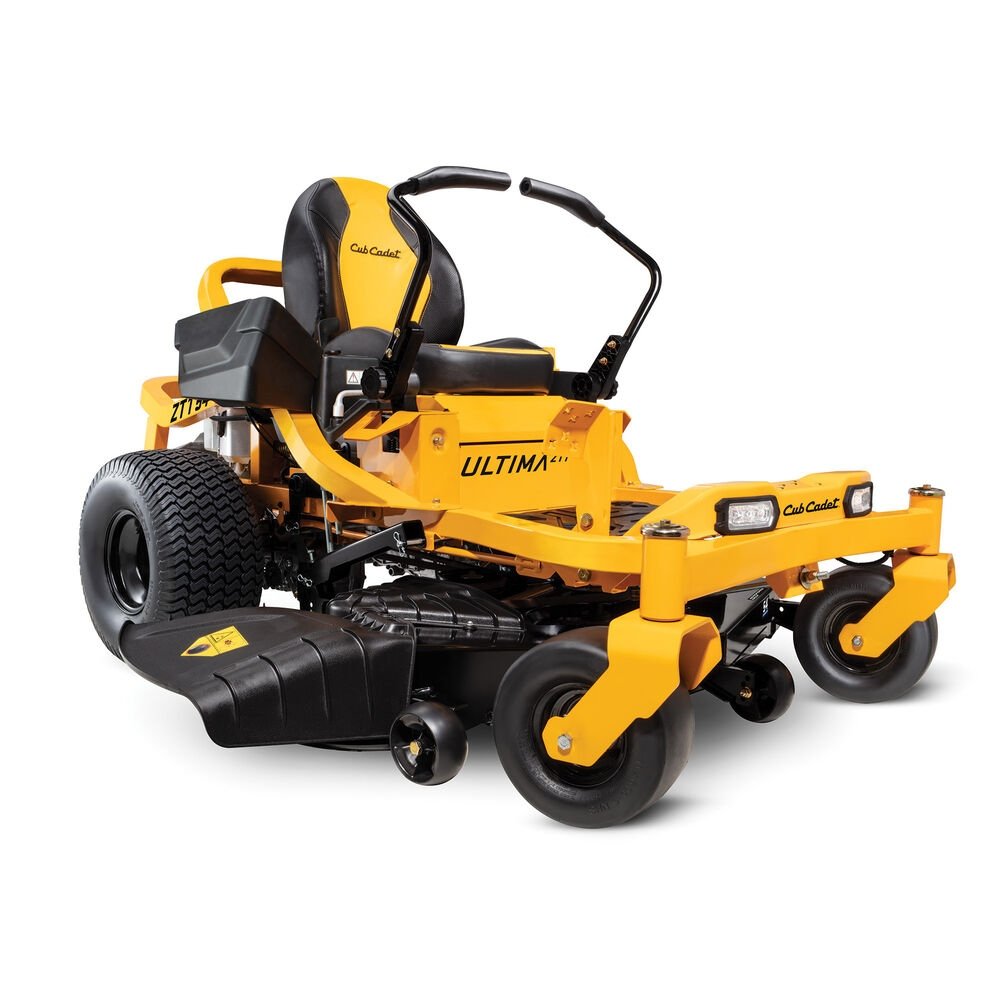

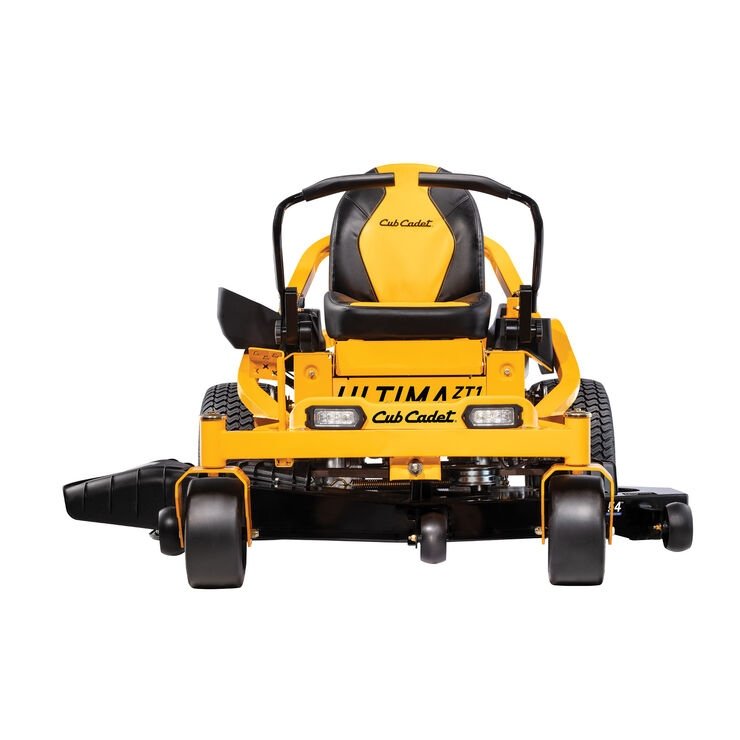

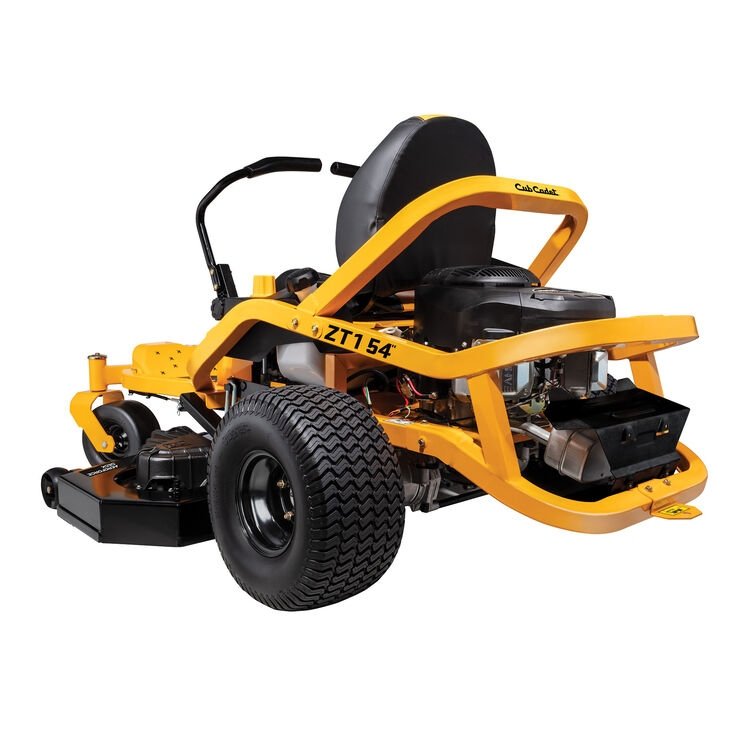

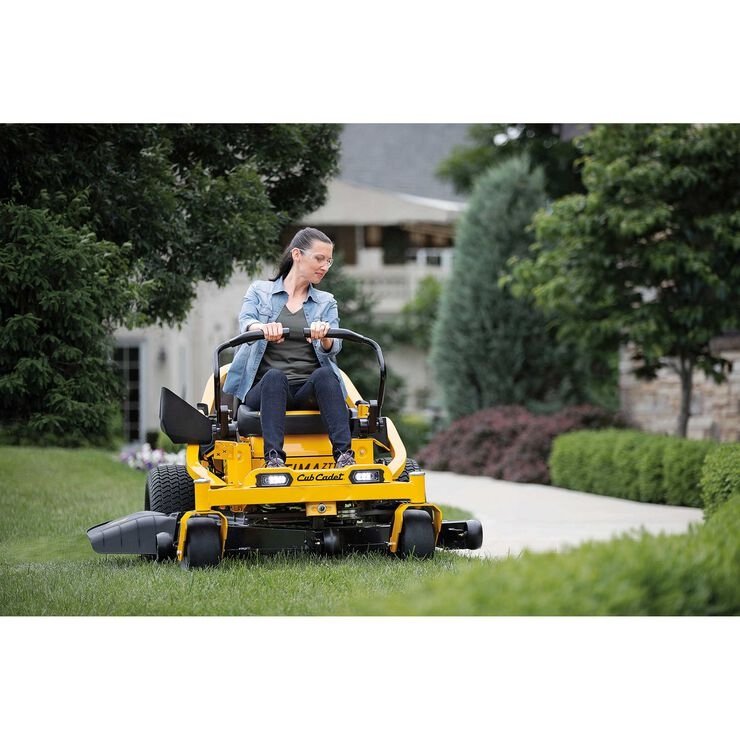

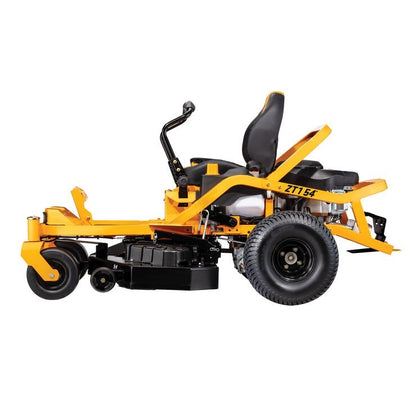

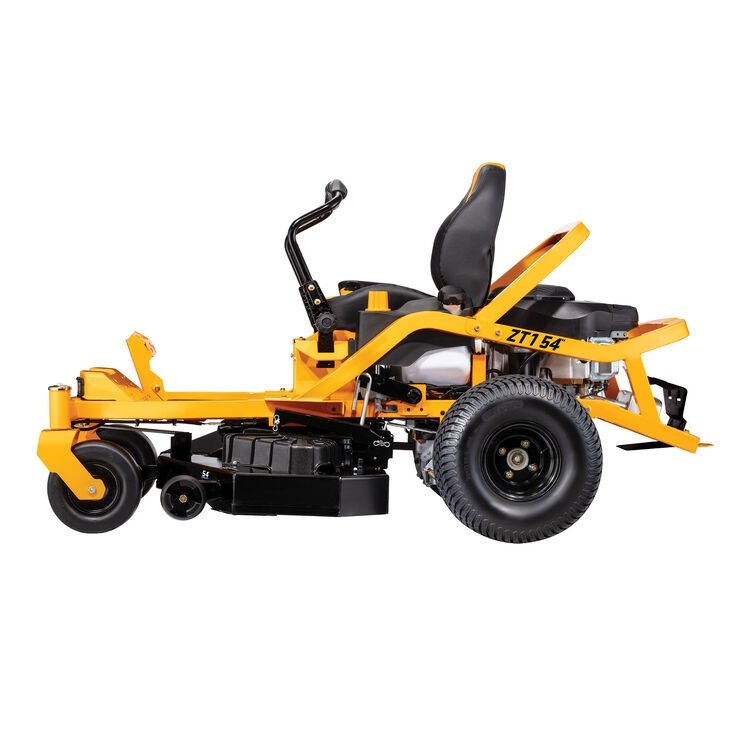

The Cub Cadet® Ultima Series ZT1 54 is a 54-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.
- A 24HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
Engine
- Engine BrandKohler®
- Engine Model7000 Series
- Engine Model NumberKT724
- Engine Displacement747cc
- Engine Output24HP
- Starter TypeElectric
- Fuel Tank Capacity3.5 gal. US (13.25 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- LubricationFully pressurized
- Charging System12 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeSeparate Choke
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery210 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionHydro-Gear EZT 2200
- Forward Speed7 MPH / 11.3 km/h
- Reverse Speed3.5 MPH / 5.6 km/h
- Drive SystemHydrostatic
Cutting Deck
- Deck Cutting Width54 in
- Deck WashNo
- Deck Material11-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionFabricated
- Blade(s)3
- Deck LiftFoot pedal with Dial Adjust
- Cutting Height Range1” – 4.5”
- Anti-Scalping3 gauge wheels
- Deck Positions15
Chassis
- Frame2” x 2” tubular steel
- Turning Radius0°
- ROPSNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
Controls
- Cruise ControlNo
- BrakesDisc
- Steering ControlLap Bars
Comfort
- Seat Type20″ high back
- ArmrestsNo
- Seat AdjustmentKnob
- Front Caster SuspensionNo
Wheels
- Rear Tires20”x 10”- 8”
- Front Tires11″x 6″-5″
- Tire TreadTurf Master / Multi Trac
Specifications
- SeriesUltima Series™ ZT
Additional Specifications
- Hour MeterAvailable Separately
- Mulch KitAvailable separately
- Headlight(s)Dual-LED
- Cup HolderYes
- Operator Presence SystemYes
- Parking BrakeLap Bar Integrated
- Model Number17AREACM010
