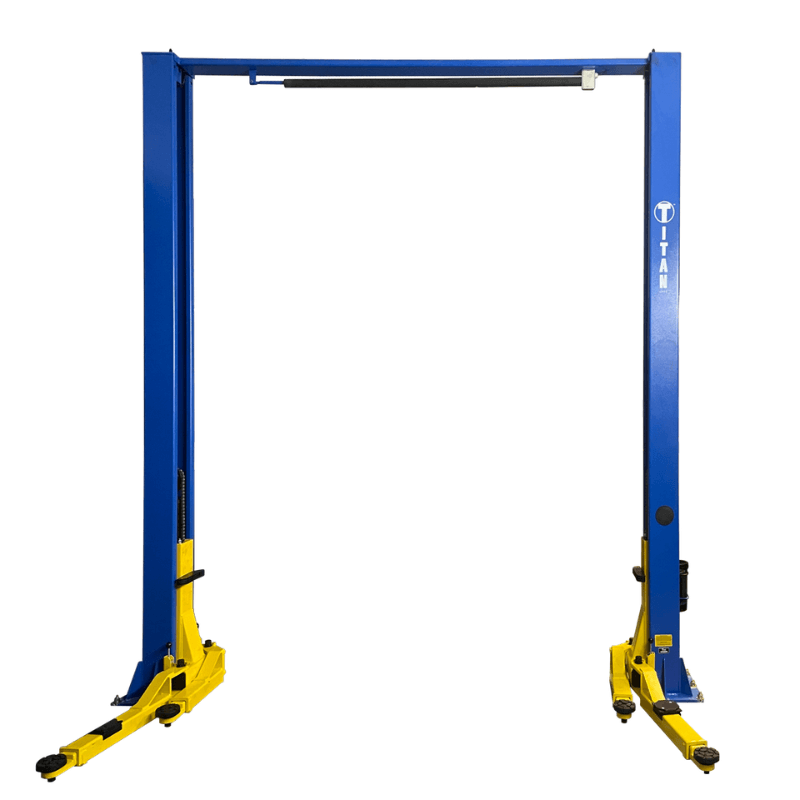

HD2P-9000AC 9,000lb 2-Post Lift by Titan
The Titan HD2P-9000AC 2-Post Lift Gen-2 is a durable and reliable lifting solution designed for automotive service shops and serious car enthusiasts. With a 9,000lb capacity, this lift is suitable for a wide range of vehicles and features an asymmetric arm design for easy vehicle access. Its heavy-duty construction and sleek finish make it a long-lasting addition to any garage. It also comes with safety features such as rubber door guards and a safety shut-off bar. Plus, it is easy to install and has a 5-year structural warranty.
2-Post Lift Gen-2 HD2P-9000AC Specifications
Type: 2-Post Lift
Lifting Capacity: 9,000 lbs
Arm Design: Asymmetric
Hydraulic System: Dual 3” cylinders with low-friction chain rollers

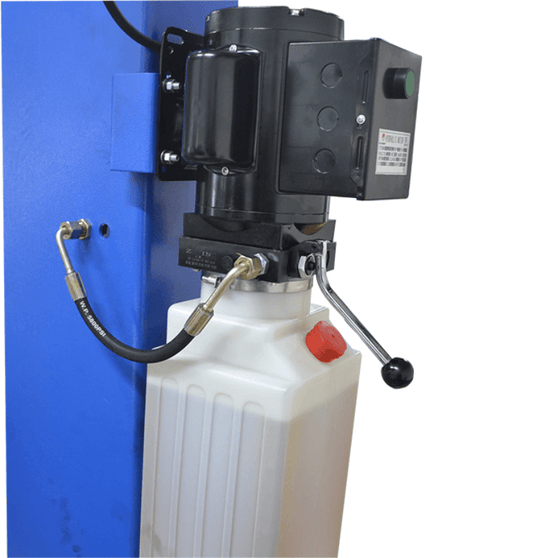

Power Unit: 220V
Amp Draw: 15–26 amp
Lifting Speed: 45 seconds
Width: 137.8”
Height: 142.95”
Width Between Posts: 113.62”
Drive Thru Clearance: 103.98”
Lifting Height: 4.65” – 72.84”
Concrete Requirement: 4” thick, 3,000 PSI strength
Shipping Length: 145”
Shipping Width: 19”
Shipping Height: 44”
Shipping Weight: 1,380 lbs
HD2P-9000AC 2-Post Lift Gen-2 Special Features
- Commercial-grade design for professional and enthusiast use
- 9,000lb lifting capacity to accommodate various vehicles
- Asymmetric arm design for better vehicle access
- Rubber door guards to protect vehicle finishes
- Padded overhead safety shut-off bar for added protection
- Dual-point safety release for controlled lowering
- Durable powder-coated finish in Cobalt Blue with bright yellow arms

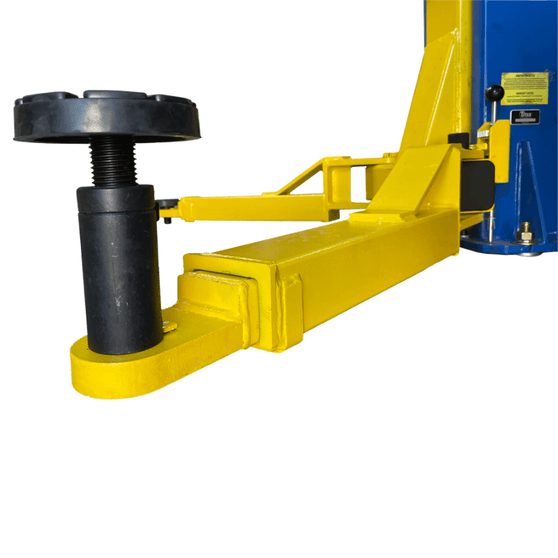

- Low-profile lifting arms with automatic arm restraints

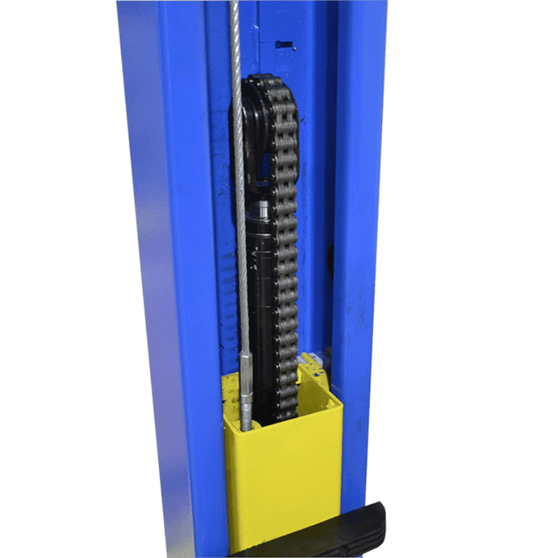

- Dual 3” hydraulic cylinders with low-friction chain rollers for smooth operation
- Threaded lifting pads and stackable truck adapters for versatility
- Space-saving power unit mounting bracket for efficient garage layout
- Sleek internal hose routing with integrated hose guards
- Anchor bolt kit included for secure installation
- 5-year structural warranty and 1-year electric/hydraulic parts warranty
